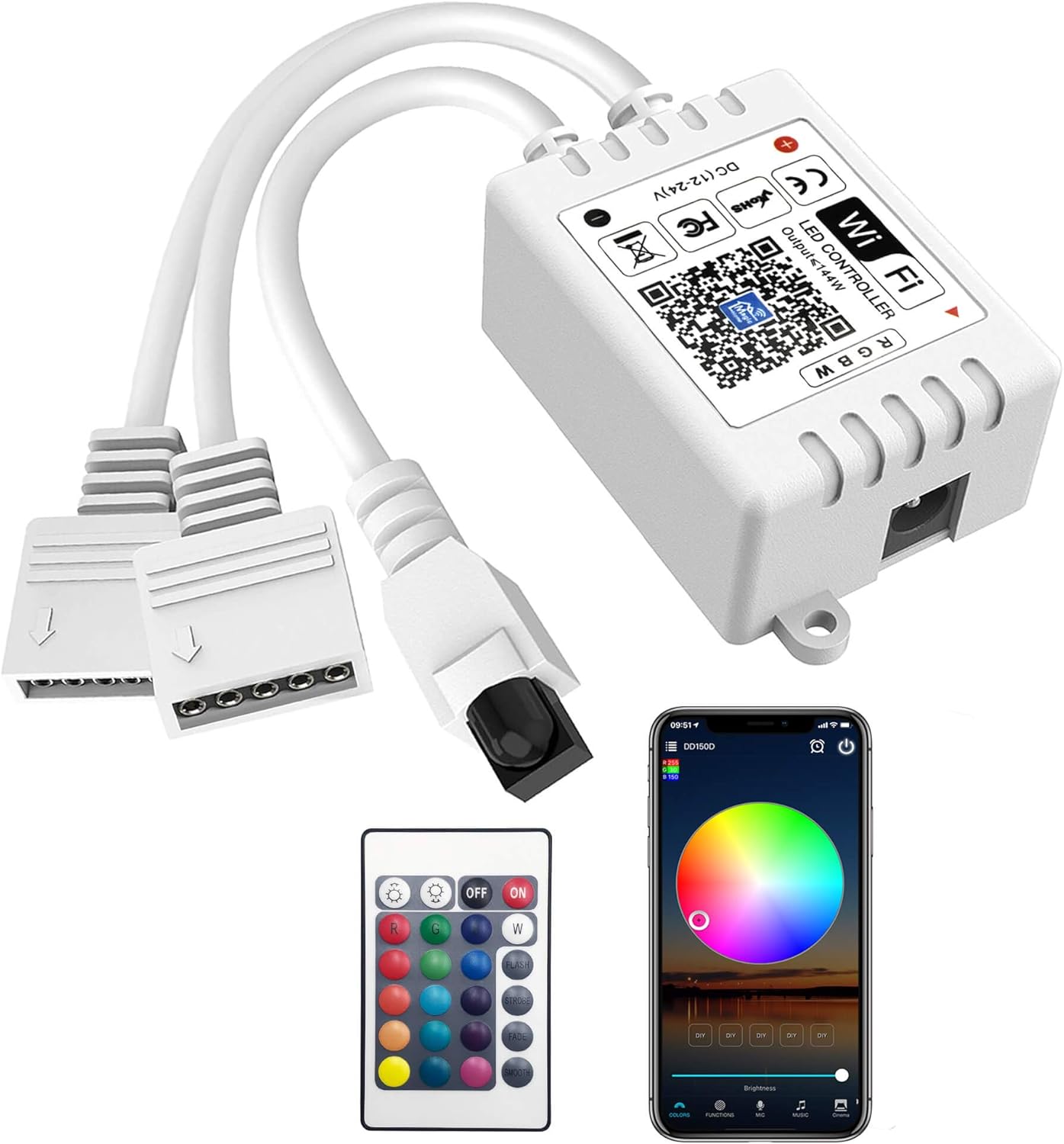

WiFi RGBW LED Controller 5 Pin 2-Output with 24-Key Remote, Alexa & Google Assistant Compatible, Voice/App Control for LED Strip Lights, Android/iOS

WiFi RGBW LED Controller 5 Pin 2-Output with 24-Key Remote, Alexa & Google Assistant Compatible, Voice/App Control for LED Strip Lights, Android/iOS

$16.99 USD
$25.99 USD $16.99 USD
Sale Sold out

Product description


wifi rgbw led controller

Q&A:



  1. Q: Why doesn’t the remote control work?

A:1) The remote control power supply is out of power and the battery needs to be replaced.

2) The user mistakenly long pressed the power button of the remote control, clearing the pairing of the remote control and controller.

Solution: Please unplug the power 4-5 times to reset the controller; within 5 seconds after the reset is successful, press and hold "ON" on the remote control for 5 seconds, the light strip will flash slowly, indicating successful pairing.





  • Q: Why does the LED Strip flash cycle colors repeatedly?

A: Because the controller did not successfully connect to the mobile APP "Magic Home".

Solution: 1) Check to confirm that the power supply has sufficient working power.

2) Make sure the mobile phone uses the 2.4G wireless wifi network and the mobile phone is next to the router.

3) Make sure the connection between the LED strip and the controller is stable and not loose. 4) Check to confirm that the router is not connected to too many smart devices, causing the wifi controller to frequently disconnect.



  • Q: Why are the actual colors reversed when setting the LED strip red/green light?

A: Please confirm whether the order of R.G,B of the connected light strip is RGB or GRB, and select the corresponding order in the APP "Magic Home".

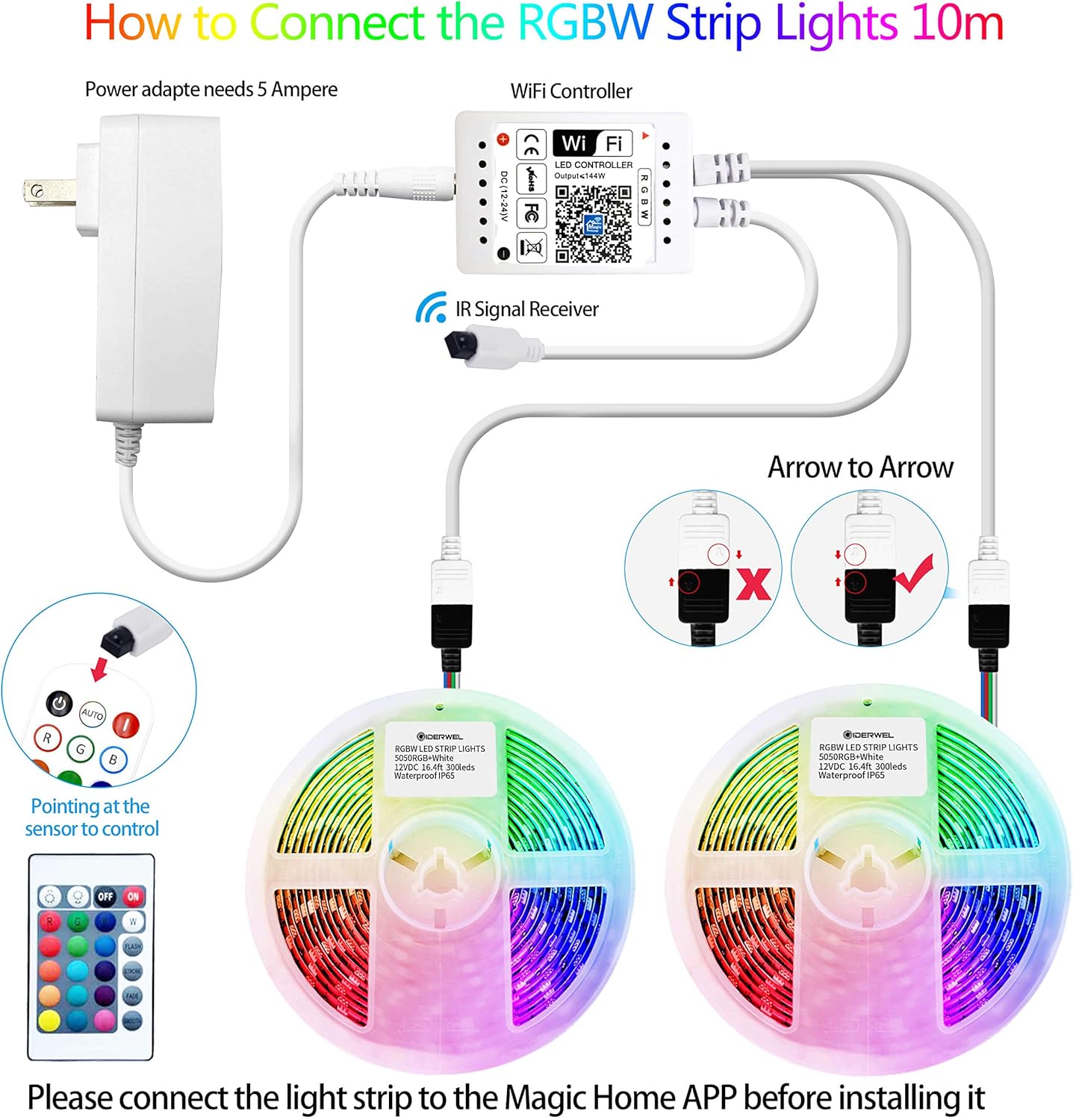

  • Q: Why can’t my LED strip connect to the controller?

A: This controller is only suitable for 5-pin RGBW LED strips, not 4-pin RGB LED Strips.

Wrong wiring sorting can result in opposite colors, e.g. red becomes green.

rgbw wifi controller

Q: Why are the actual colors reversed when setting the LED strip red/green light?

A: Please confirm whether the order of R.G,B of the connected light strip is RGB or GRB, and select the corresponding order in the APP "Magic Home".

rgbw led controller

Only one WiFi Controller(Need to prepare additional adapter not less than 3A）

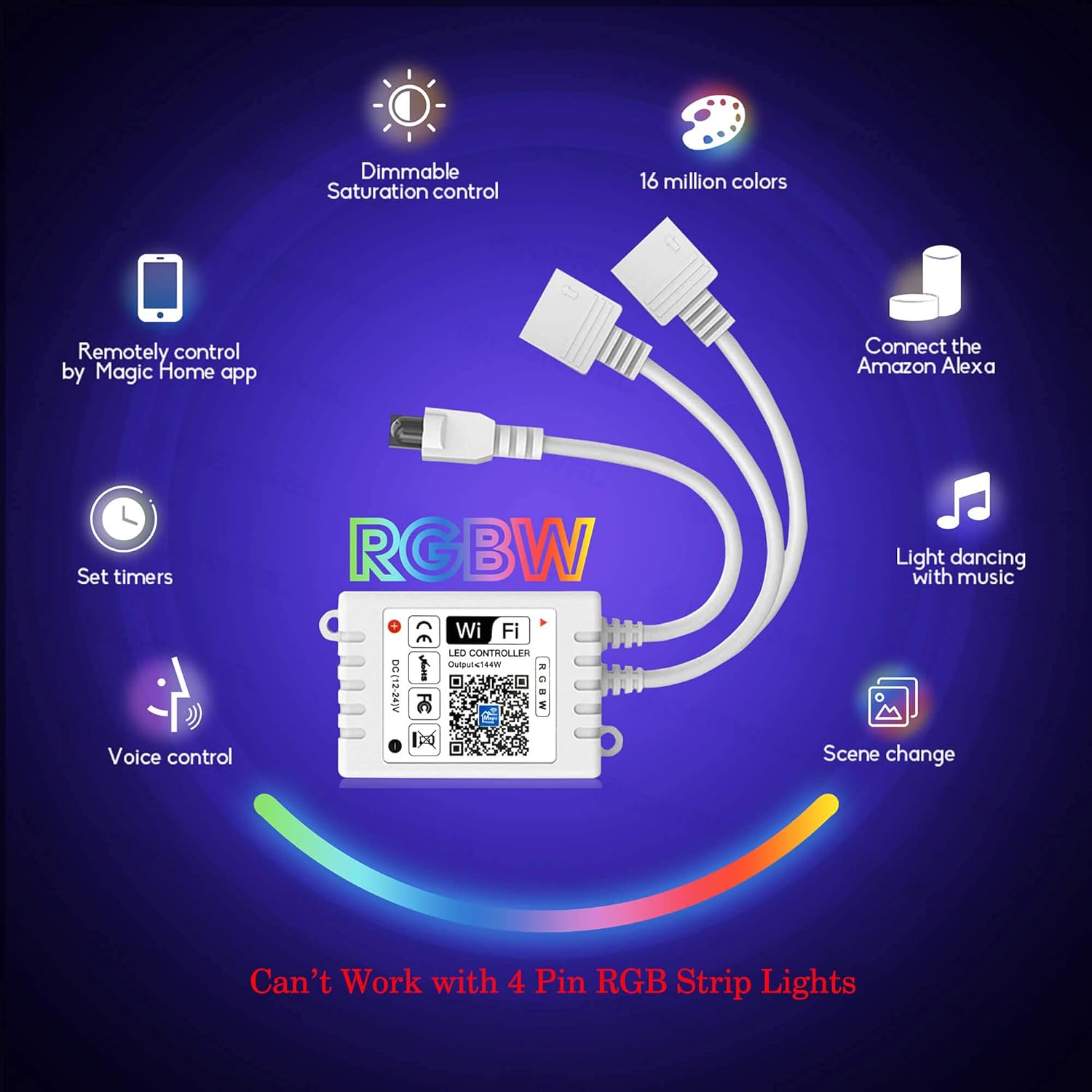

Note: The number of pins that can be connected is 5PIN (RGBW), 4PIN (RGB) is not applicable.

Add more Fun: How to use the color mode-Order a 5 Pin RGBW LED Strip to create amazing lighting effects.



RGBW LED light strip



  • Long press the light name, you can see the 3 choices,Please click:Change device type



Smart RGBW



  • RGB/W: RGB and W only display one of them on APP(RGB and W can be controlled separately)



WIFI RGBW



  • RGB&W: RGB and W can be displayed on the APP screen at the same time(RGB and W can be controlled together)

wifi led controller RGBW

Package include:



  • 1 x WiFi RGBW Conrtroller(No Power Adapter Included)
  • 1 x 24 Key RF Remote Control
  • No Power Adapter Included
smart wifi led controller
