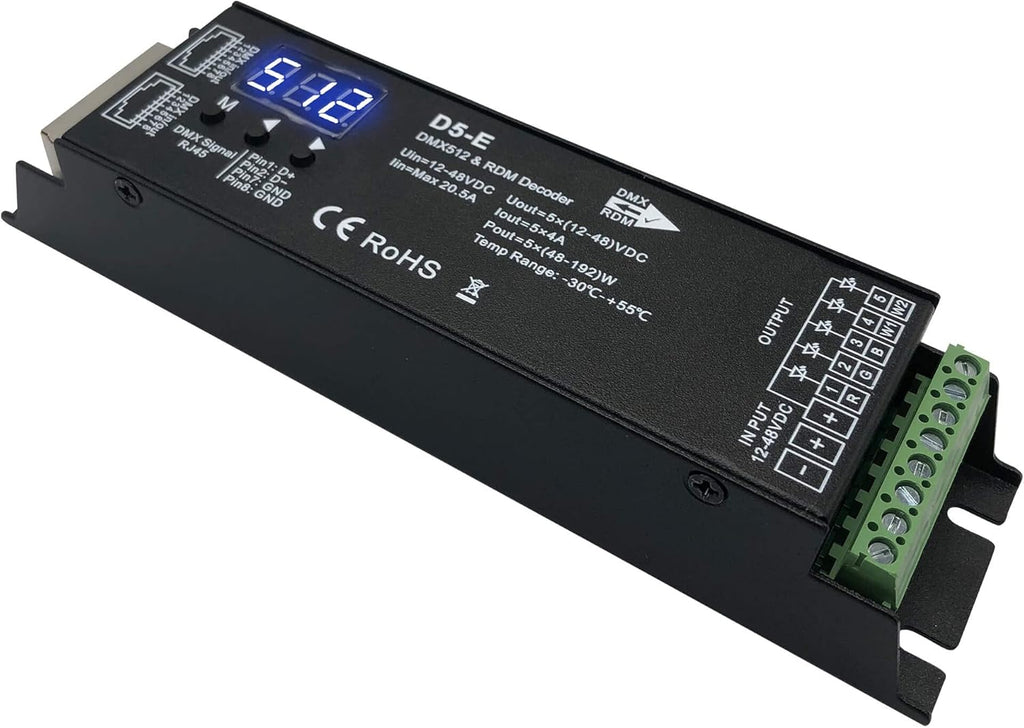

5 Channel DMX Decoder with RDM Digital Display,DMX512 Dimmer Driver PWM RGBCCT LED Controller for RGBWW RGBW or 5group White lightstrips LED Module Light Input 12V-48VDC
Sale price
$44.99 USD
Regular price
$49.99 USD
Product description
5CH 3-Digit Digital Display DMX512 decoder
For commercial, landscape, party and stage lighting control
Party Lighting
Stage Lighting
Landscape Lighting
Works with DMX controllers
- It can be controlled through the DMX console, receive international DMX512 standard digital control signals, convert them into PWM controller signals to drive LED lights

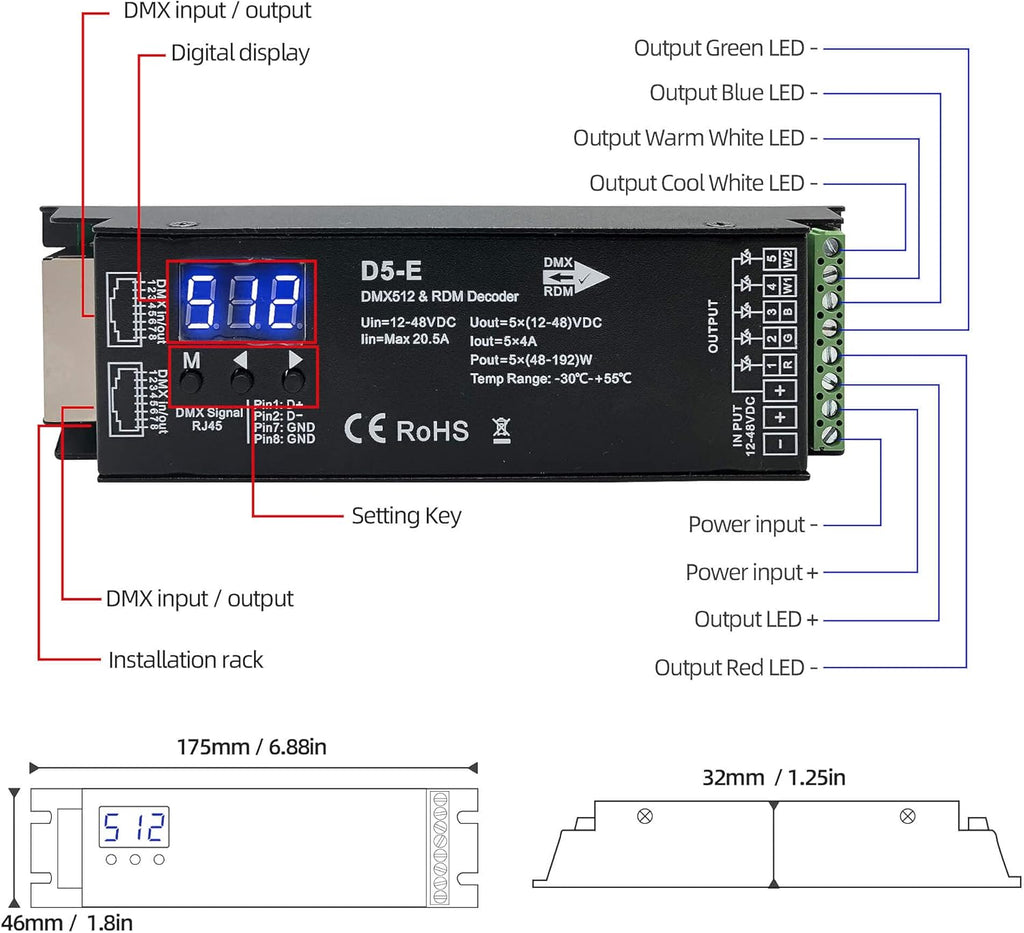

- RJ 45 network output/input interface design, easy to connect with DMX console and other DMX512 decoders.
- Support RDM function: the address code of this decoder can be set on the DMX master
- Each DMX decoder occupy 5 DMX address, each channel for 256 gray levels, dimming PWM output 0-100%,
- 16bit (65536 levels) /8bit (256 levels) grey level selectable.
- Logarithmic or linear dimming curve selectable.
- It can easily control and change the light color/mode. Suitable for various scenarios. Such as home lighting systems, small churches, parties, stage performances, etc.
- DC12-48V constant voltage input.
- RGB+CCT 5-channel output.

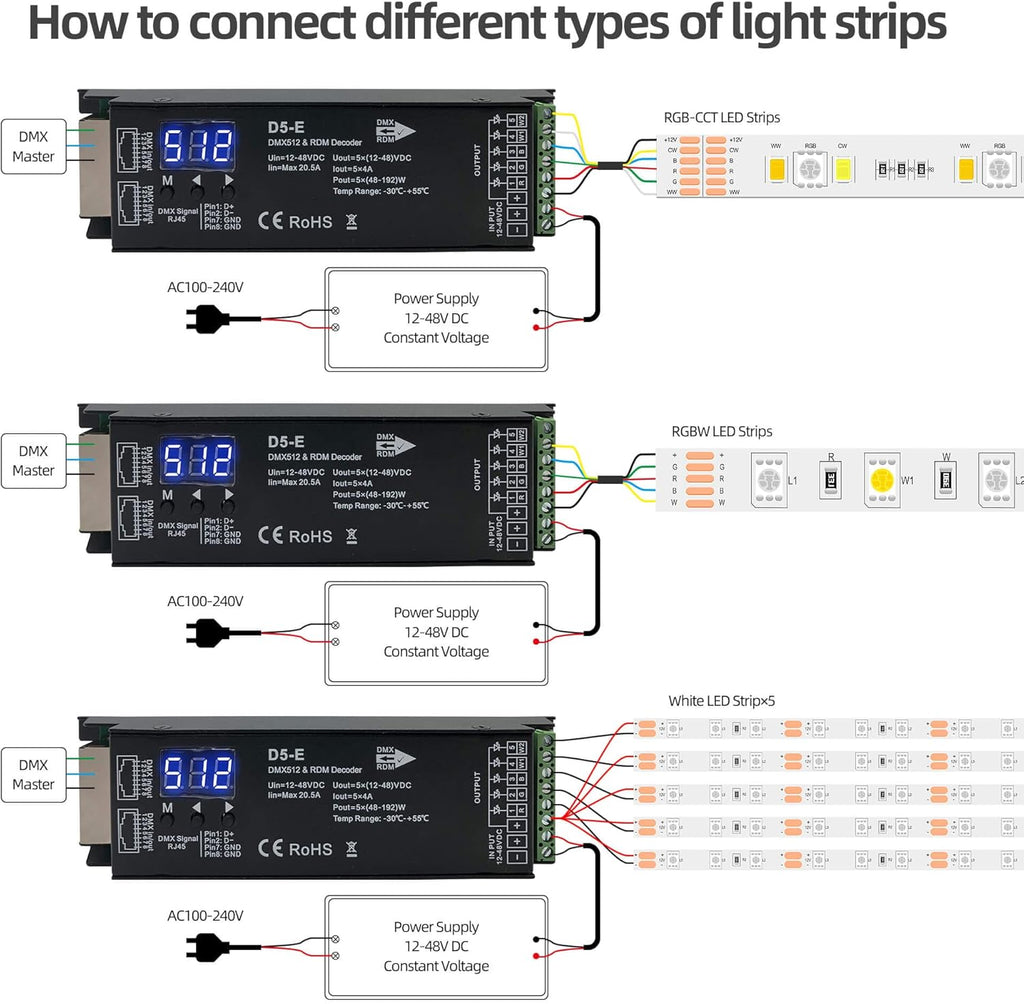

- This decoder works with most LED lights such as CCT, RGB, RGBW, RGBWW, RGBCCT LED strips or LED modules.
Packge Included
-
1 x 5CH DMX512 Decoder
- 1 x User Manual
 |
 |
 |
 |
|
|---|---|---|---|---|
|
|
|
|||
